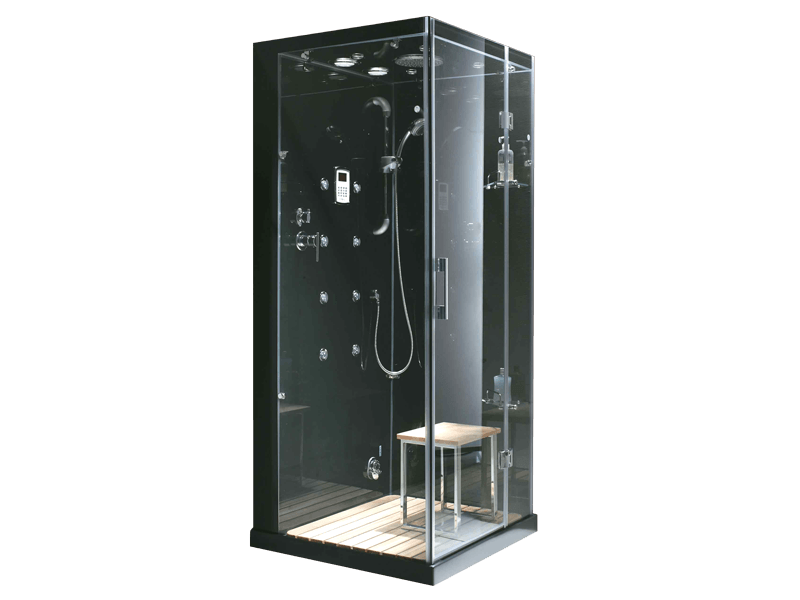

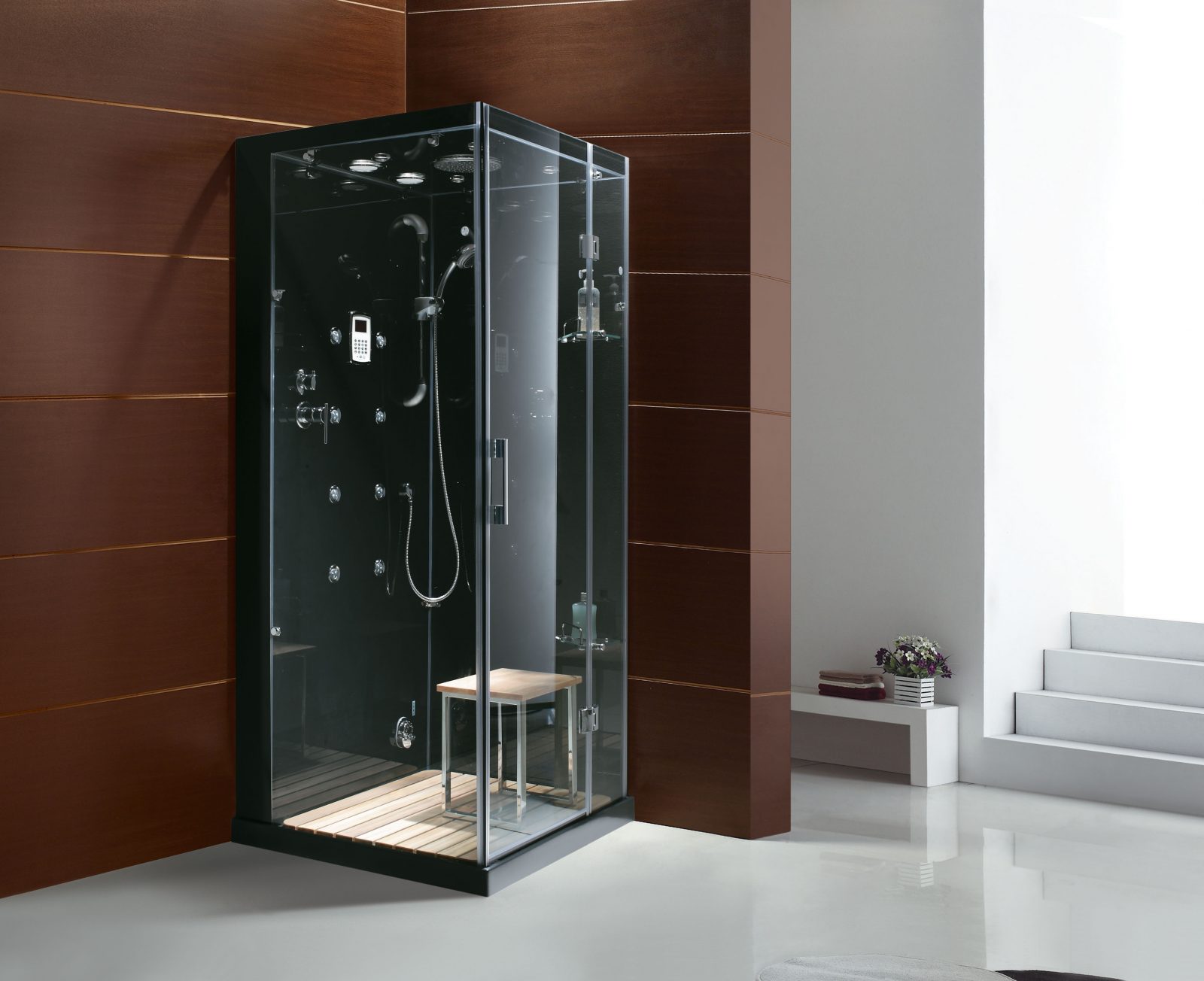

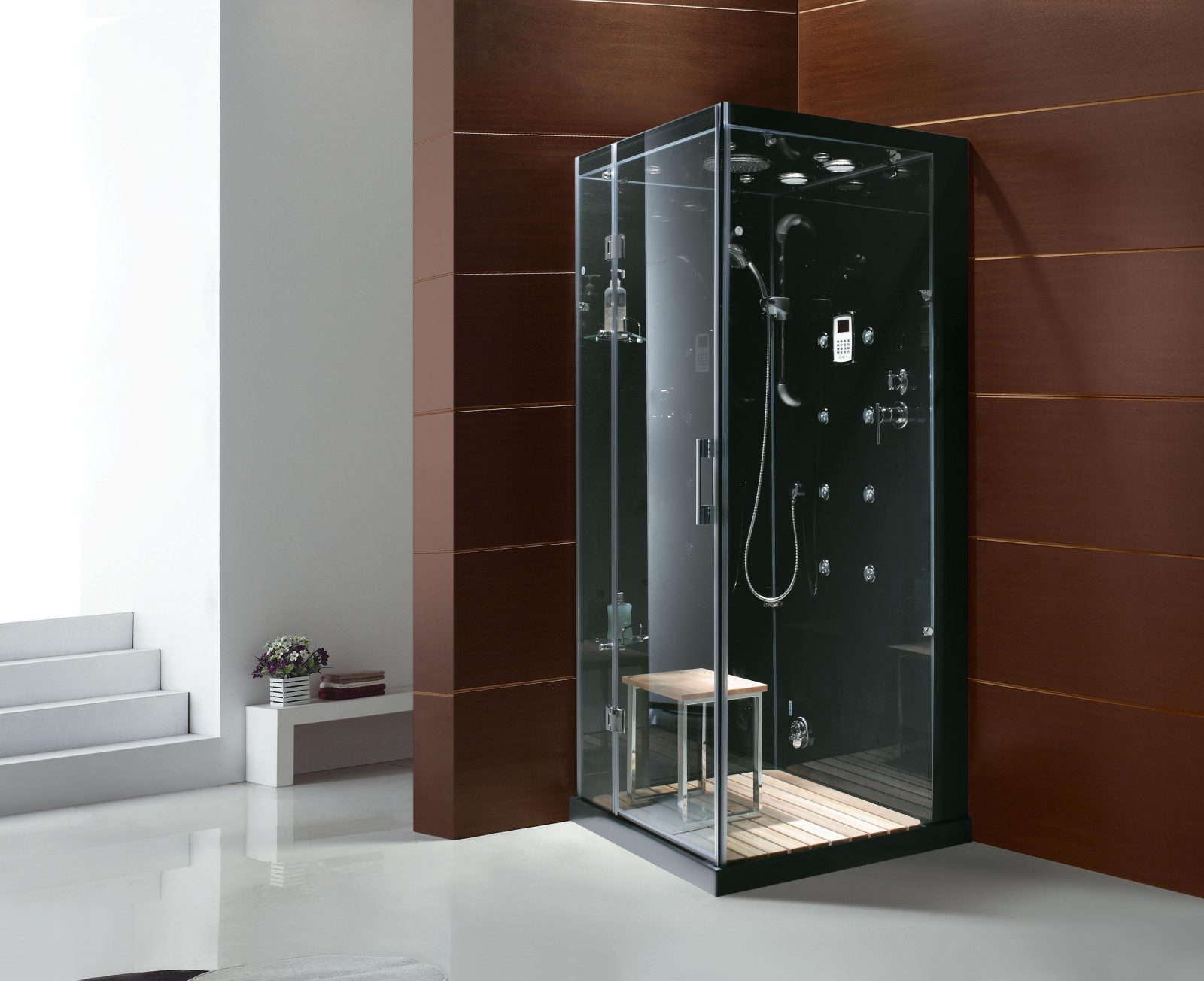

Jupiter Steam Shower in Black

Model #: M6023

A spa in your own home. Homeward Bath’s Luxurious shower and steam systems are equipped with everything you need for complete relaxation. This tempered glass, multi-jet shower enclosure comes with an ultra quick heating 3KW steam generator, multiple body massage jets, a drenching 8 in. wide rainfall shower head, and a handheld shower head with adjustable settings for many different water spray patterns. Additionally, the multi-colored LED lights illuminate the aroma therapy-filled steam to create the ultimate relaxation experience.

Description

Personal steam shower, size 35 x 35 x 84H in

  • 3kW Quick heating Self-Draining Steam Generator w/Steam Aromatherapy Cup
  • Stone composite base included
  • 8 Body Massage Jets
  • Hand-held Shower w/ Various water massage settings & adjustable height bracket
  • 8 in. wide water-drenching Rainfall Shower
  • UPC CERTIFIED Thermostatic / Anti-scald Faucet -LIMITED LIFETIME WARRANTY
  • Built-in Control Key Pad
  • FM Radio
  • RCA Output
  • “Chromotherapy” LED multiple Color Lighting
  • Waterproof Shower Grid
  • 1 Removable Bench
  • Circulation Fan for moving steam throughout the shower
  • Accessory Rack
  • Phone Hook-up
  • Hinged door
  • Available in Black or White, Left or Right Controls

*The Company shall bear no responsibility whatsoever for any act or failure to act by any entities installing and/or delivering the Company’s products to its customers.

GENERAL INFORMATION

  • Units come in panels and are assembled with screws, nuts, and bolts on site
  • This unit should be assembled inside the bathroom for convenience
  • Access panel area is recommended

Note:

All shower bases are a hand made stone composite and may need to be set in mortar for leveling purposes. It is advised to have base onsite before preparing drain location

TECHNICAL INFORMATION

  • Materials: tempered glass
  • Power supply: 20amp, 220V
  • Steam ready: 2-5 MIN
  • Dimensions: 35 x 35 x 84 IN

ELECTRICAL INFORMATION

  • 1 dedicated 12-2 line for steam (line 1, line 2, and ground)
  • 220 volt, 20 amp GFCI breaker
  • There is a length of wire from the main control box supplied to connect to power source

PLUMBING REQUIREMENTS

  • The unit is equipped with hot and cold, metal braided ½ inch water supply hose with ½ inch national pipe thread
  • Hot and cold shutoffs with ½ inch male national pipe thread (not included) should be installed
  • Supply hoses are to be connected from the faucet manifold on the unit to the shutoff valves
  • All water jet features are pre-plumbed with reinforced braided flexible supply hose
  • All fixtures and fittings must be checked for tightness as they may have ben loosened during transportation. Access panel is recommended


Technical Data:
Materials Tempered glass
Power supply 220V, 3KW
Steam Ready 5 minutes
Size 35 x 35 x 84 in

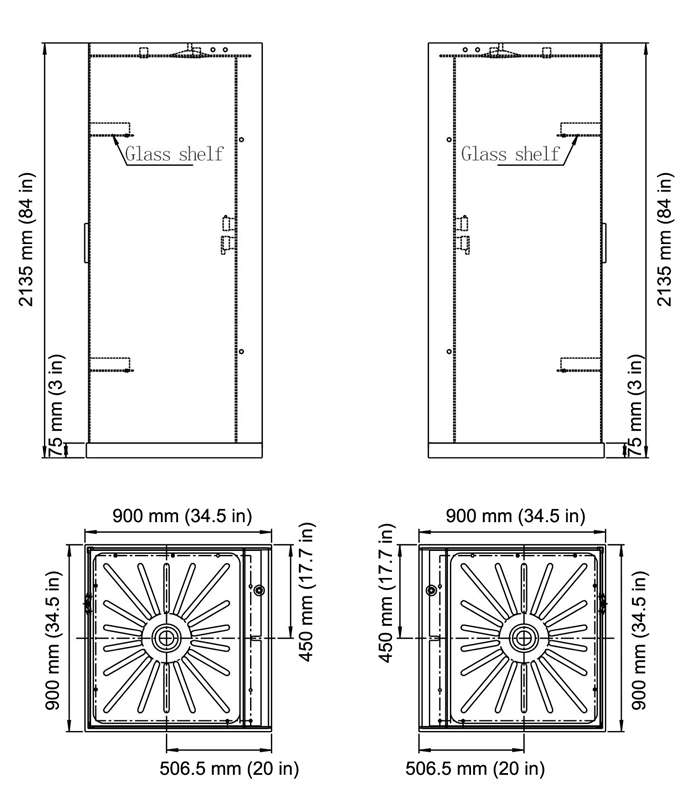

M-6023_d
