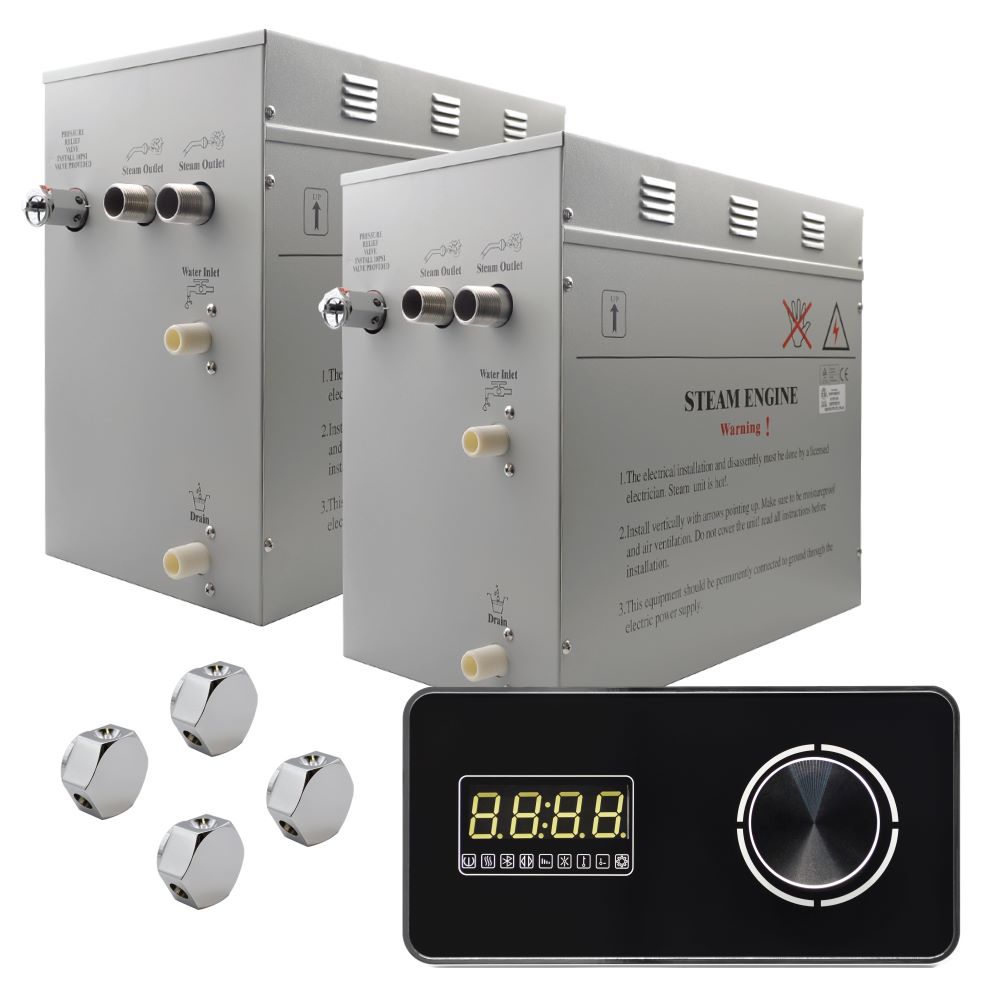

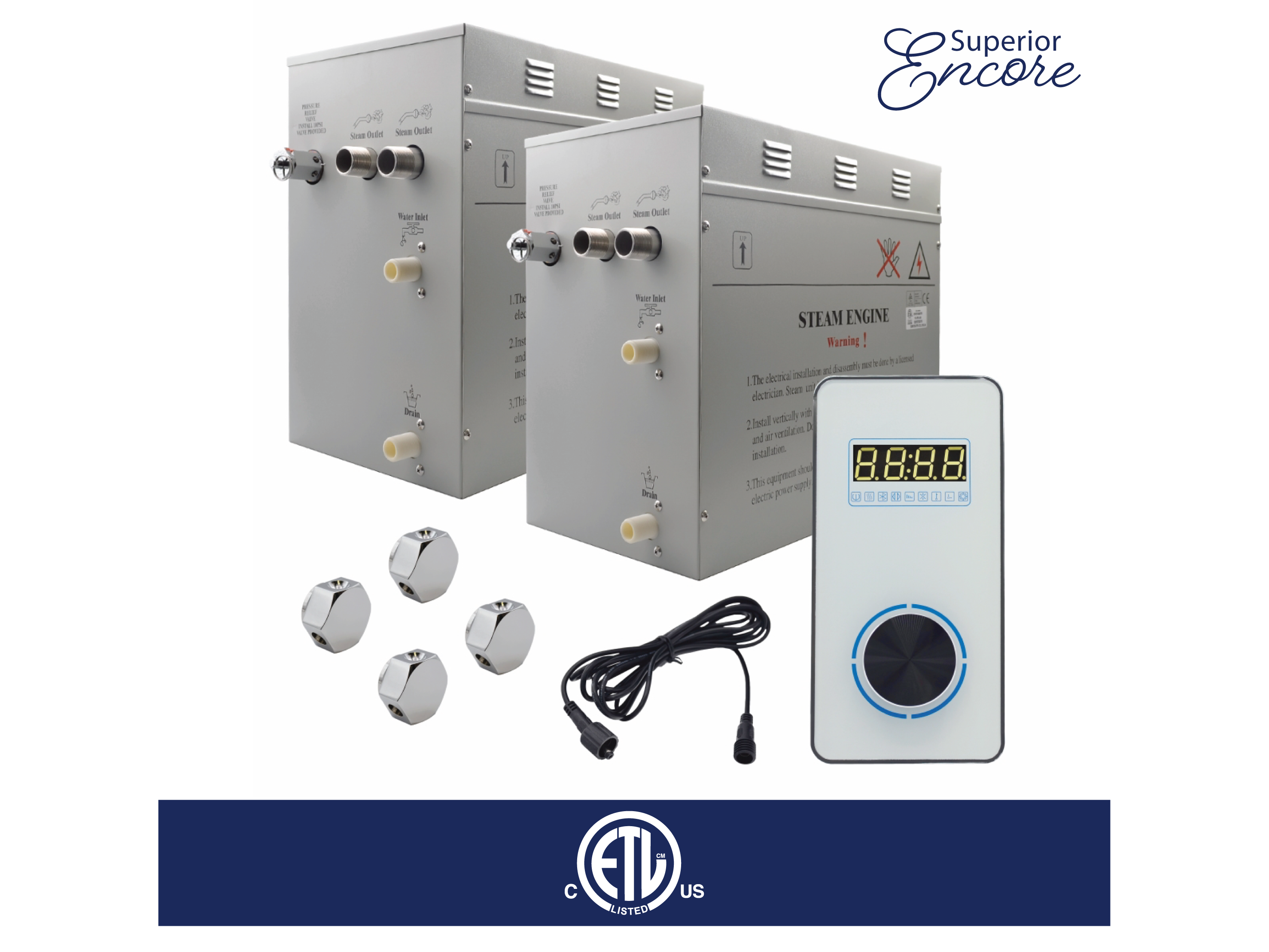

Superior Encore 24kw Steam Generator Kit

Model #: GH24

Steam Planet is introducing a new Steam Generator Series! Superior Encore is a reengineered series which comes with multiple upgrades for easier installation. Our new keypads have built-in thermostat, so there is no need to make extra holes for the temperature probe. Major upgrade was made to a keypad connection cable for faster and easier keypad connection! Superior Encore Steam Generator is equipped with Auto-Drain to produce Always Fresh and Healthy Steam and it is ETL Certified.



Category:

Description

Steam Planet is introducing a new Steam Generator Series! Superior Encore is a reengineered series which comes with multiple upgrades for easier installation. Our new keypads have built-in thermostat, so there is no need to make extra holes for the temperature probe. Major upgrade was made to a keypad connection cable for faster and easier keypad connection! Superior Encore Steam Generator is equipped with Auto-Drain to produce Always Fresh and Healthy Steam and it is ETL Certified.

  • Steam generator is ETL certified
  • Encore Horizontal Digital Keypad
  • New! Upgraded keypad connection cord for faster and easier installation
  • Keypad can be mounted in or outside of the steam shower
  • Encore Keypad has a built-in Temperature Sensor
  • Various Kits available at hwbpro.com

TECHNICAL INFORMATION

  • Two 12kW Generators with each dimensions: 20 ½”L x 9 ½”W x 15 ½”H
  • Steam outlet per generator: two ¾" outlet
  • Total cubic footage steam room: 700-1400
  • 20 feet of connecting wire for control panel
  • 12 V light output wire
  • Each Generator: 220-volt/6-2 wire-60amp GFCI breaker (2 hot lines and 1 ground line)
  • Water inlet and drain valves require ½ in. NPT fillings
Installation & Operation Manual
