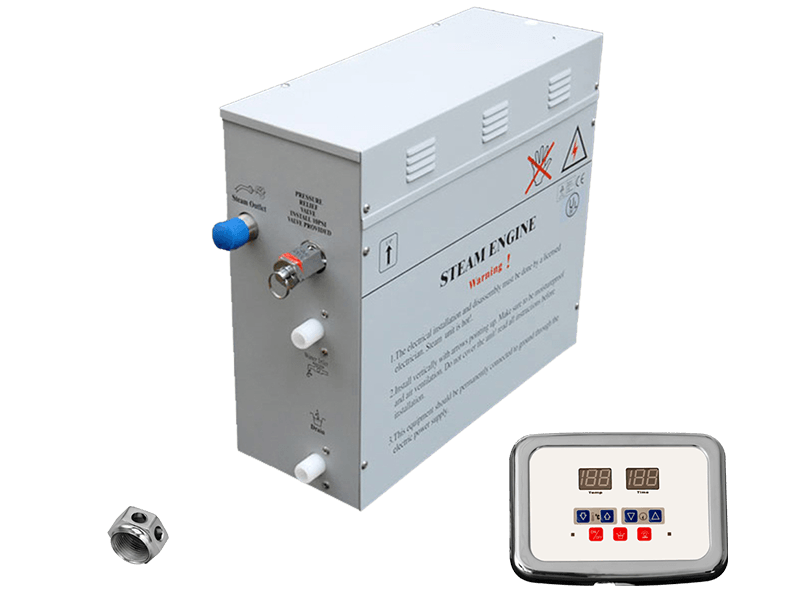

Superior 06 Steam Generator Kit

Model #: 6KW

Transform your shower into a private spa and enjoy all the therapeutic and relaxing benefits of steam with Steam Planet's “all in one” Steam Generator Package. Soothe your tired muscles, hydrate your skin, enhance and improve your breathing, help with weight loss and achieve a more restful sleep. Steam Planet Steam generators come with everything you need for you own personal spa. Included; Steam generator box, control panel, 16 ft. of wiring for the control panel, steam outlet with aromatherapy reservoir built in. NEW Keypad/Trim colors: Black/Satin Brass, Black/Chrome, White/Chrome, White/Satin Brass.

INSTALLATION VIDEO:

Product Description

    • Self-draining steam generator
    • Control Panel which can be mounted inside or outside of the Shower Room
    • 16 feet of connecting wire for control panel
    • Temperature Sensor
    • NEW Keypad/Trim colors: Black/Satin Brass, Black/Chrome, White/Chrome, White/Satin Brass
    • Chrome or Satin Brass steam head with aroma therapy outlet
    • Light Kits available in White or Chromotherapy
    • Generator is supplied with a single ¾” steam head
    • 12V light output wire
    • Operation & Installation Instruction Manual for the Generator and the Steam Control Panel
    • 220-volt/10-2 wire-30 amp GFCI breaker (2 hot lines and 1 ground line)
    • Water inlet and drain valves require 1/2 in. NPT fillings
    • Heats 140-320 adjusted cubic feet. (Call to confirm size. Material used to build the room will change the “adjusted” cubic footage)

*The Company shall bear no responsibility whatsoever for any act or failure to act by any entities installing and/or delivering the Company’s products to its customers.

TECHNICAL INFORMATION

  • Dimensions: 19½L x 6½W x 14½H
  • Power supply: 220-240V, 50/60 Hz, 1 phase
  • Steam outlet: single ¾" outlet
  • Cubic footage steam room: 140 - 320 ft3

ELECTRICAL INFORMATION

  • 220V / 10-2 wire
  • 30A GFCI breaker (2 hot lines and 1 ground line)

PLUMBING REQUIREMENTS

  • Water inlet and drain outlet require ½" NPT fillings


Technical Data:
Power Supply220-240V, 50/60Hz, 1 Phase
  Installation Manual
