Galaxy Steam Shower

Model #: WS112-32

A spa in your own home. Homeward Baths’s Luxurious shower and steam systems are equipped with everything you need for total and complete relaxation. The multi-jet shower enclosure, comes with an ultra quick heating 4.2KW steam generator, Multiple body massage jets, a drenching 8 in. wide Rainfall shower head, and a hand held shower head with adjustable settings for many different water spray patterns. It also comes with a Wireless media center that allows you to play your favorite music, talk shows, sporting events, etc. from the radio, MP3, CD, IPods , and even your cell phone, Additionally, the multi colored led lights illuminate the aroma therapy filled steam to create the ultimate relaxation experience.

Product Description

Two person steam shower, size 60L x 33W x 88H in

  • Two person Steam and Shower Enclosure
  • Upgraded 4.2 kW Quick heating, Self-Draining Steam Generator w/Steam Aromatherapy Cup

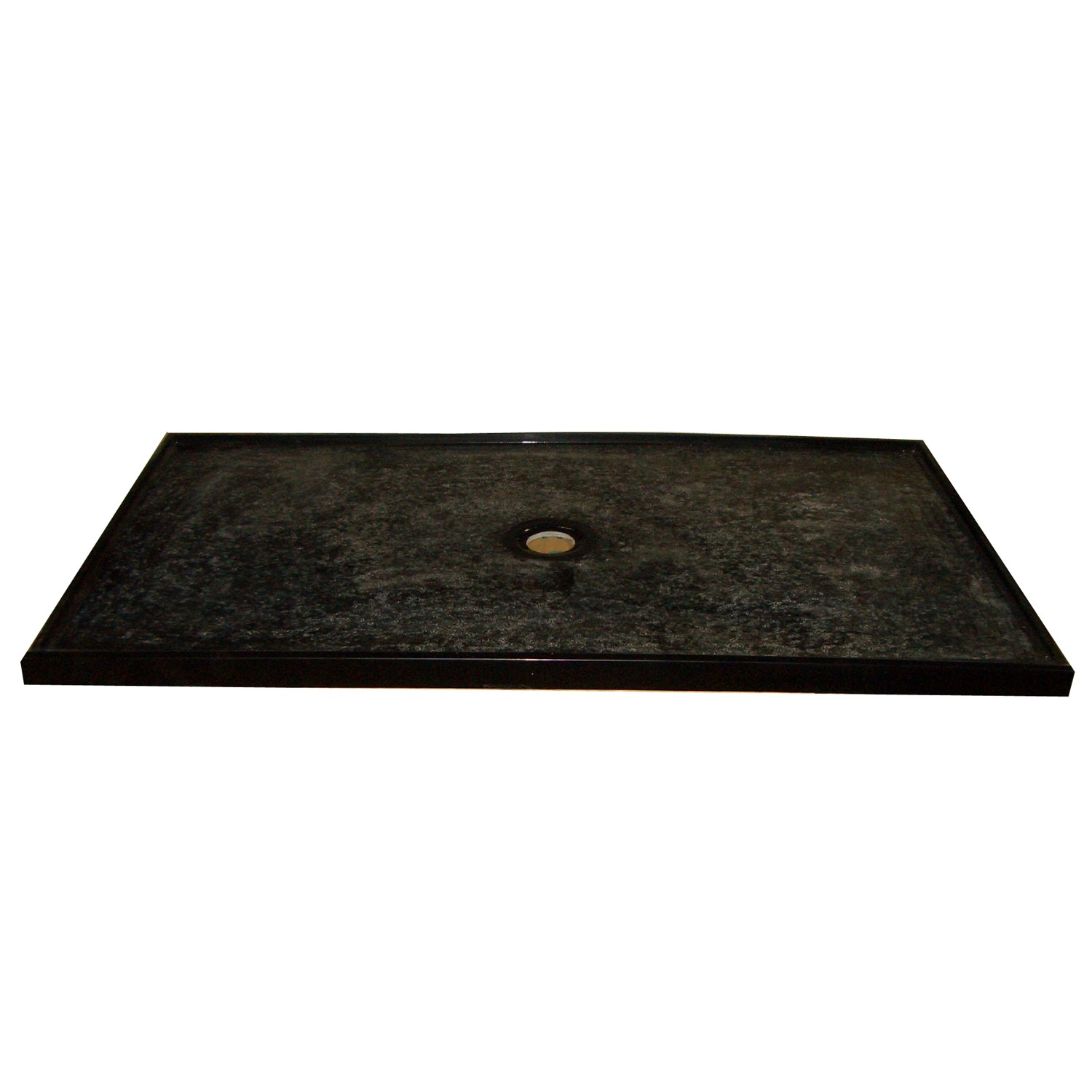

  • Stone Base Available (Upgrade)
  • 12 Body Massage Jets
  • Hand-held Shower w/ Various water massage settings & adjustable height bracket
  • 8 in. wide water-drenching Rainfall Shower
  • Thermostatic / Anti-scald Faucet
  • “Special Process” Black Tempered Glass walls and front Clear Glass
  • “Glass Touch” Control Panel
  • FM Radio
  • Wireless transmitter transmits from any electronic device
  • “Chromotherapy” LED multiple Color Lighting
  • Waterproof Shower Grid
  • Circulation Fan
  • Accessory Rack
  • Hinged door
  • Unit and door is reversible
  • Assembles from inside the unit

*The Company shall bear no responsibility whatsoever for any act or failure to act by any entities installing and/or delivering the Company’s products to its customers.


  • Units come in panels and are assembled with screws, nuts, and bolts on site
  • This unit should be assembled inside the bathroom for convenience
  • Access panel near control panel and jets is recommended
  • Note: All shower bases need to be leveled in its final resting position (all feet must be touching the ground). Mark the placement, then pull base out and begin assembly


  • Materials: aluminum, tempered glass
  • Power supply: 220V
  • Steam ready: 2-5 MIN
  • Dimensions: 60L x 33W x 88H in


  • 1 dedicated 12-2 wire with 20 amp GFCI breaker


  • The unit is equipped with hot and cold metal braided water supply hoses with ½ inch national pipe threaded fitting
  • Hot and cold shutoffs with ½ inch male national pipe thread (not included) should be installed
  • Supply hoses are to be connected from the faucet manifold on the unit to the shutoff valves
  • All water jet features are pre-plumbed with reinforced braided flexible supply hose
  • All fixtures and fittings must be checked for tightness as they may have bee loosened during transportation
  • Note: The flexible drain hose included with this unit is for installation into a floor drain only. Substituting the existing drain setup for a setup of the installers’ choice will not void the warranty of the unit as long as there is no evidence of misuse or damage to the base. If a substitute drain system is used, a 3/8 inch stub must be added to the main shower drain line to connect the steam generator’s automatic flushing drainage hose

Technical Data:
MaterialsAluminum, Tempered Glass
Power Supply220V, 4.2kW
Steam Ready5 Minutes
Size59 x 32 x 84.5 in
Installation Manual
